D o c u m e n t N o : D 1 0 0 2 5 2

Page: 3

RapMan V3.1.0 Build Manual

400771 Y dead-stop

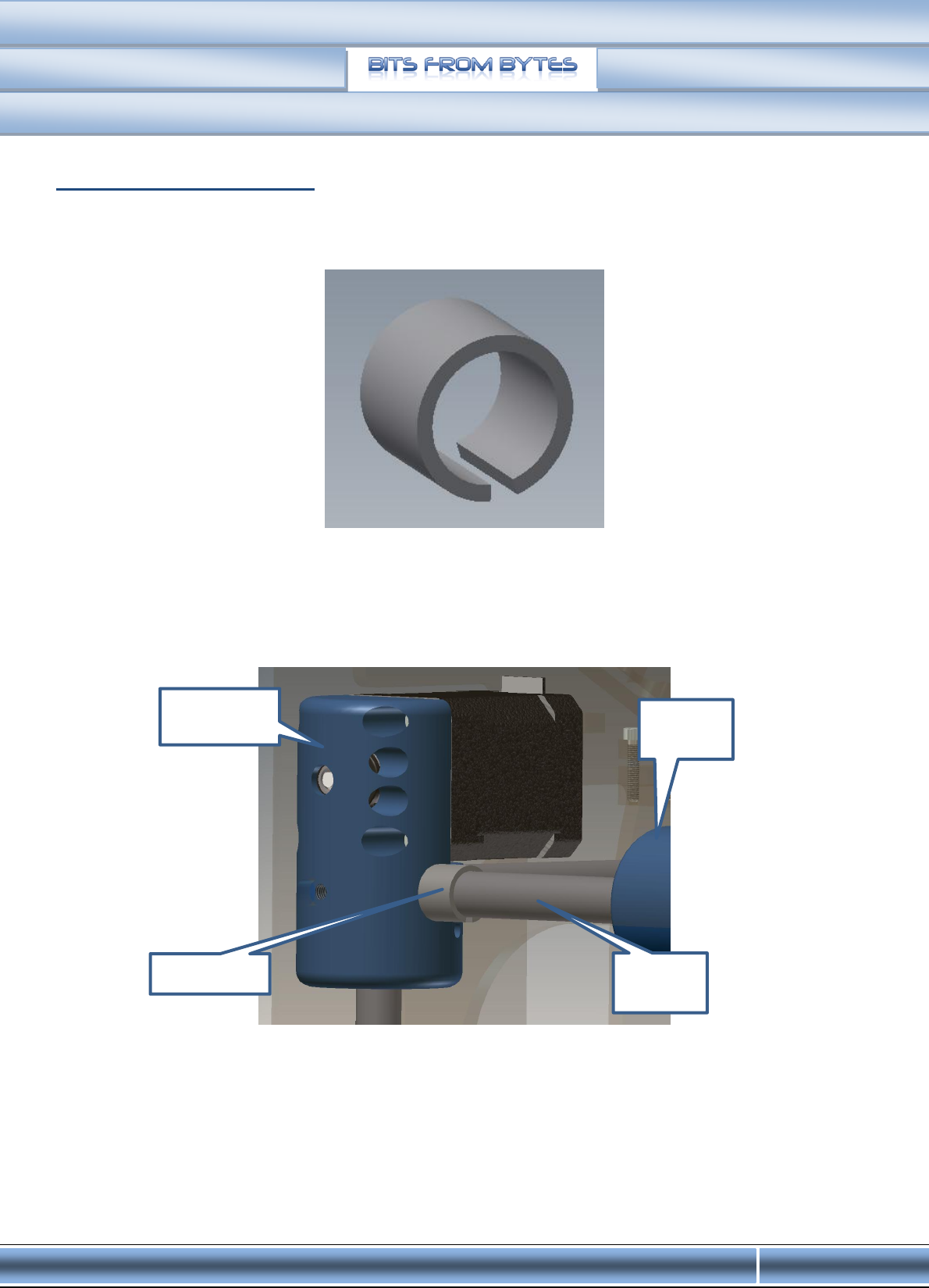

The Y dead-stop (Figure 1) needs to be fitted to one of the Y bearing bars. This protects the delicate y-switch

mounted in the rear top-left corner block.

Figure 1: Y dead-stop

1. Clip the y dead-stop over the left hand y-bearing bar, next to the rear top-left bearing block (Figure 2).

2. Slide the dead-stop back so that it touches the face of the corner block, and rotate the dead-stop so that the

slit faces down.

Figure 2: Y dead stop fitted to the rear top left of the machine.

Rear top left

corner block

Y dead-stop

Bearing

block

Y bearing

bar
