D o c u m e n t N o : D 1 0 0 2 5 2

Page: 7

RapMan V3.1.0 Build Manual

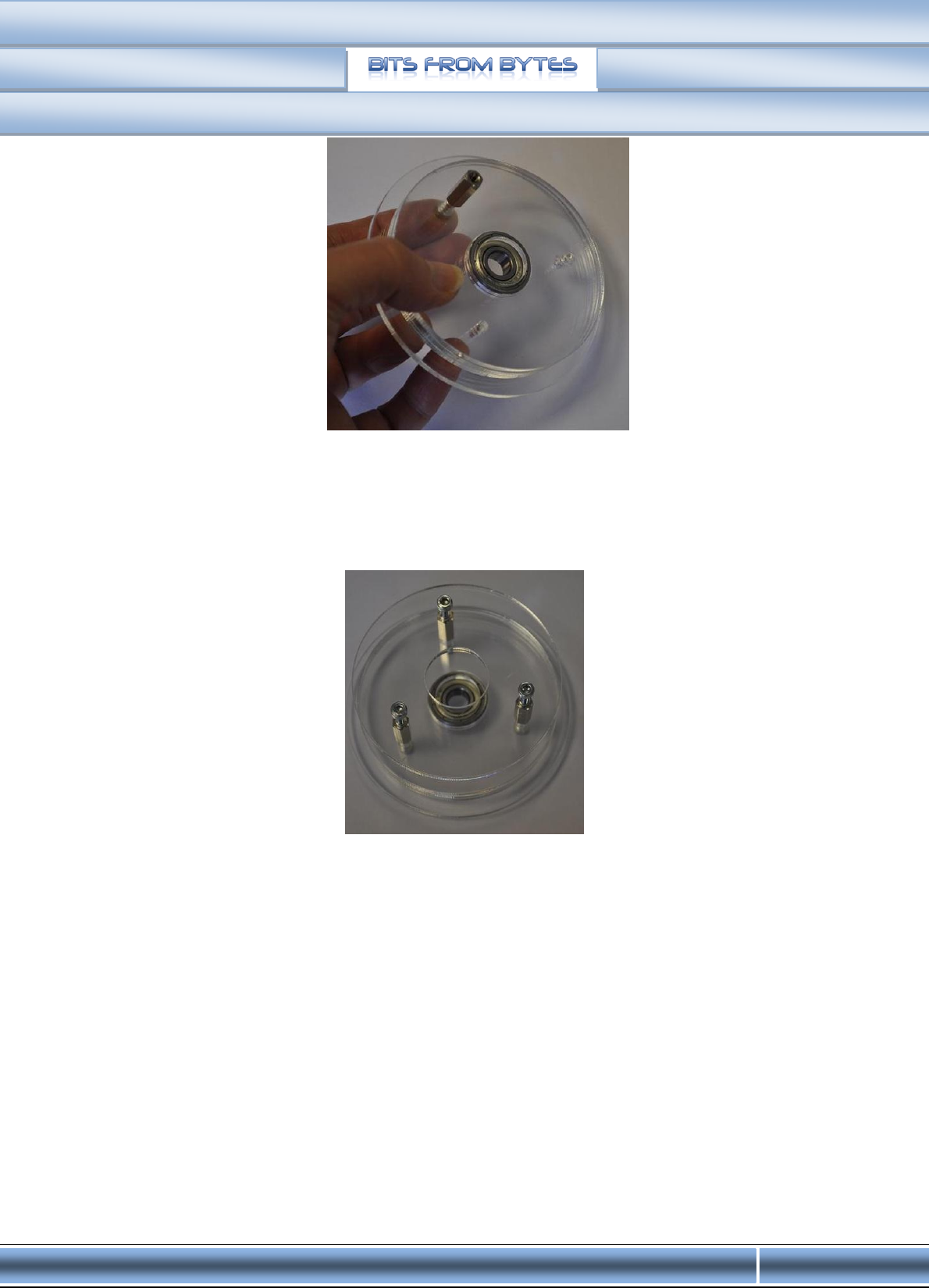

Figure 8: Extension spacers fitted to original turntable

8. Continue to insert and fit the remaining bolts and spacers.

9. Position the supplied top plate on top of the spacers to match with all 3 holes as shown in Figure 9, and

fasten using the supplied M3 bolts.

Figure 9: Extension plate fitted to original turntable

10. Reattach the turntable to the base using the central bolt, with the spacers in their original arrangement (the

configuration is illustrated in Figure 5, page 5).
